As a cost-effective and highly efficient access control device, the single-lane turnstile is designed around four core dimensions: “efficient passage, security protection, intelligent management, and scenario adaptation,” catering to the practical needs of high-traffic scenarios.

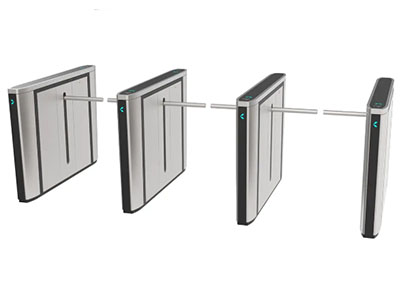

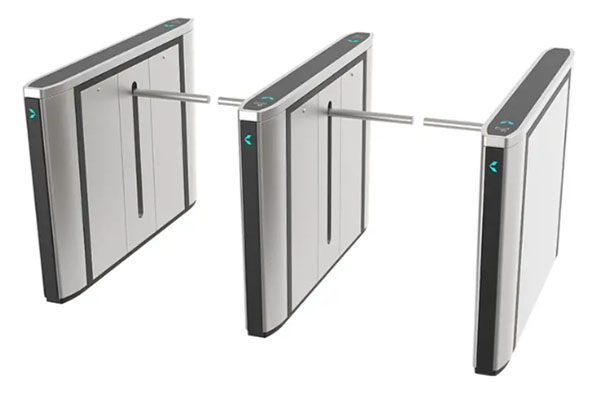

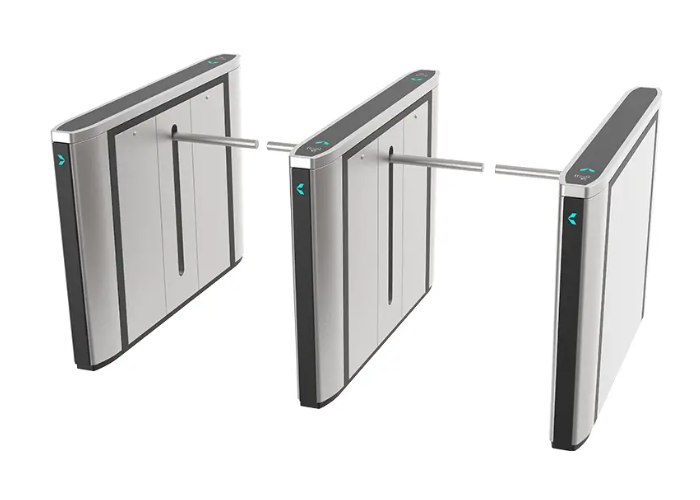

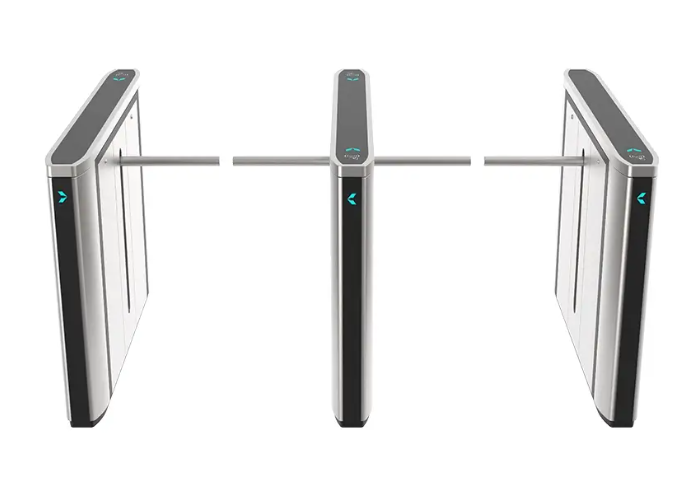

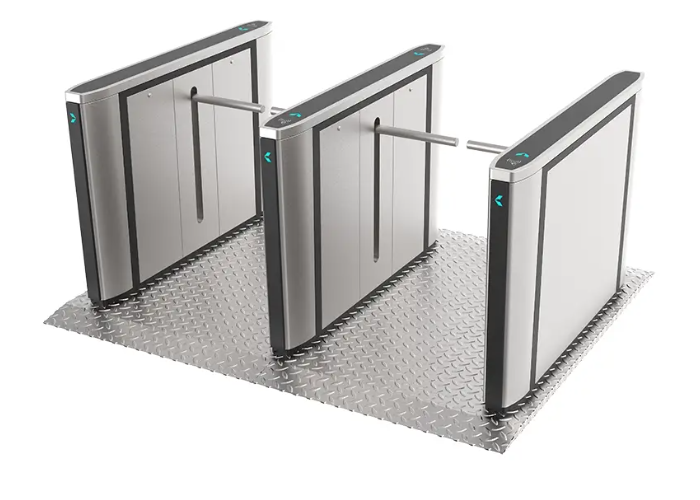

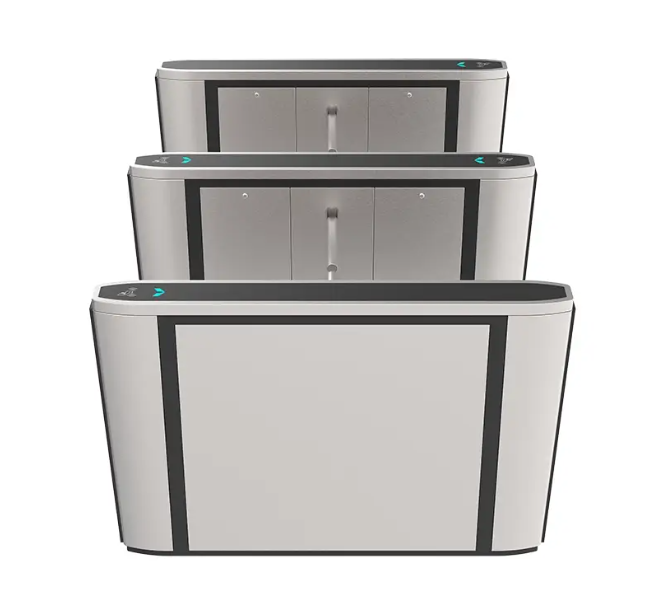

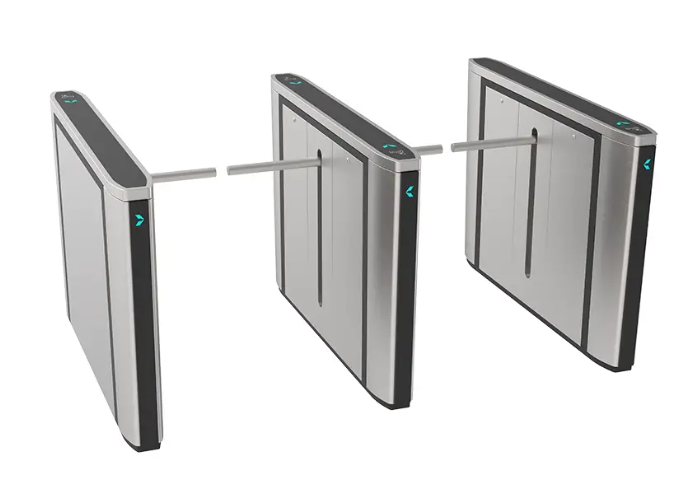

AIPADA’s newly designed drop arm turnstile JT701 takes aesthetics to a new level, blending more seamlessly into its environment. Its short and narrow body maximizes space utilization, ensuring efficient control while allowing for ample openness and design flexibility, achieving a perfect balance between practical functionality and spatial aesthetics.

Efficient Passage: Adaptable to High-Traffic Scenarios

1. Rapid Response Mechanism: Driven by a DC brushless motor, it achieves a 0.2-second recognition response and a 0.5-second gate opening speed, with a passage efficiency of 50-70 people per minute, easily handling peak commuting hours and school dismissal times;

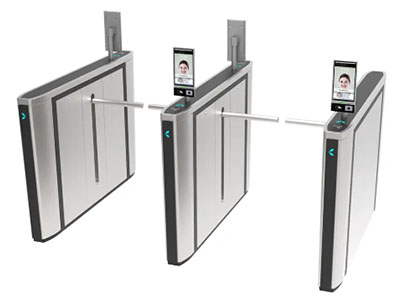

2. Multimodal Verification Compatibility: Supports mainstream recognition methods such as IC cards, ID cards, QR codes (visitor codes/health codes), ID cards, and facial recognition, which can be configured as needed to meet the verification requirements of different locations;

3. Flexible One-Way/Two-Way Switching: One-click setup of one-way passage (e.g., station exits) and two-way passage (e.g., office building corridors) modes via the backend eliminates the need for on-site debugging, adapting to different passenger flow characteristics at different times.

Safety Protection: Complies with safety regulations

4. Triple Anti-Pinch Protection: Infrared beam + mechanical anti-pinch + pressure sensor triple protection. The gate arm immediately stops and reverses when encountering resistance (≤12N), triggering a buzzer alarm to ensure the safety of the elderly and children.

5. Emergency Safety Design: Automatic gate arm lowering upon power failure (or manual raising, optional). When connected to a fire alarm system, the gate arm automatically unlocks upon fire alarm.

6. Anti-Breakthrough Warning: When forced entry, tailgating, or other abnormal behavior is detected, the gate arm locks and sounds an alarm.

Intelligent Management: Convenient operation and maintenance and data-driven management

7. Remote Management Function: Adding an access control board supports TCP/IP network connection. Administrators can remotely set access permissions, view real-time access records, and export access reports via computer backend (customizable integration with enterprise/campus attendance systems is also available).

Scenario Adaptability: Caters to diverse usage needs

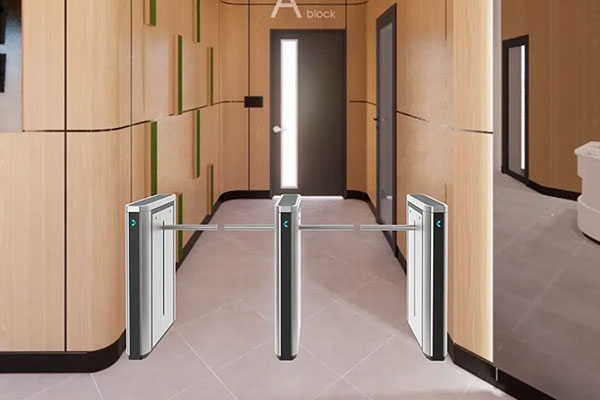

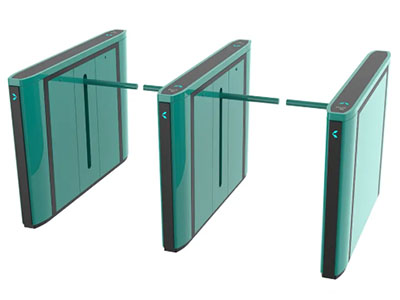

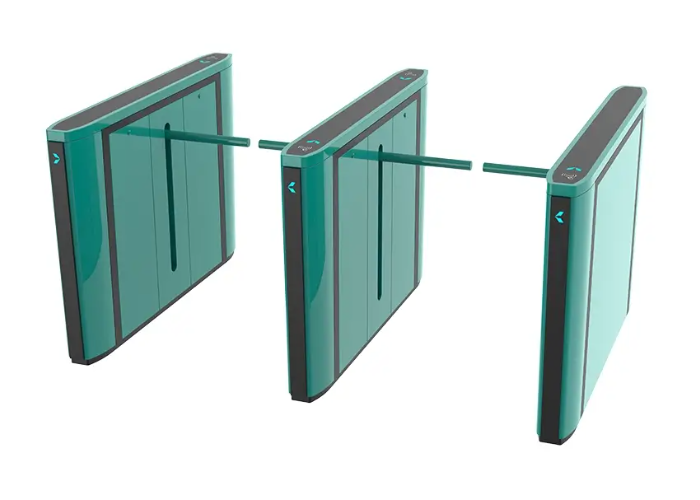

8. Strong Environmental Adaptability: The body is made of 304 stainless steel with a colored coating, achieving a high protection level. IP54 rating, moisture-proof, dust-proof, and corrosion-resistant, suitable for indoor (e.g., office buildings, campuses) and semi-outdoor (e.g., park gates) scenarios;

9. Optional extended functions: Can be equipped with voice broadcast (optional), LED status indicators (green for passage/red for prohibition/blue for standby), temperature measurement module, and metal detection module (suitable for station and campus security needs);

10. Easy installation and maintenance: Modular design, no complex wiring required for installation, convenient replacement of parts later, and a reserved maintenance port on the body to reduce operation and maintenance costs.
